KCT-5S

KCT 5 GRAVITY ROLLER CONVEYORS

Medium Duty Painted Steel Gravity Roller Conveyors the system choice for KCB Belt Conveyors.

Identical Section depth to KCB Belt Range

Free Running for Light - Heavy Loads

PVC, Stainless OR Galvanised Rollers

smallest allowable product 96mm

CONVEYOR OVERVIEW

KCT 5 Gravity roller conveyors have been designed to fill the gap between our standard gravity roller and powered conveyor ranges. KCT 5 Roller conveyors are manufactured with identical side sections to that of our KCB Belt Conveyor Range, whereby creating an aesthetically pleasing flow of equipment throughout a conveyor system, no matter which powered conveyor chosen. This allows a consistent flow of conveyors and fixed guarding to interconnect through the conveyor system for increased product control. A range of ancillary options are still available with the KCT 5 section, including curves, merge sections, and gas-assisted gated sections.

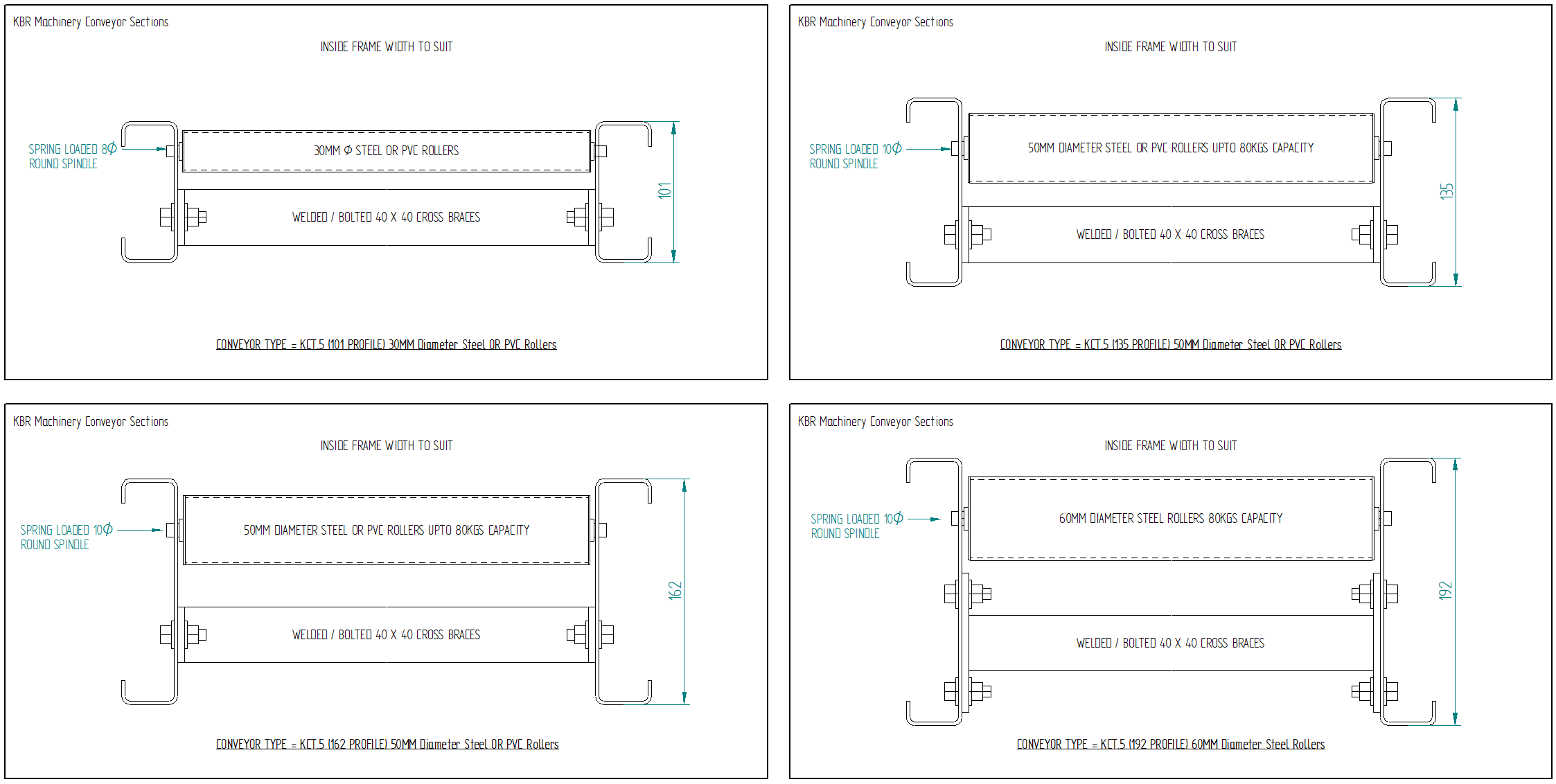

CONVEYOR FRAMES

The KCT 5 Conveyor frames are manufactured from either mild steel or 304 stainless steel dependant on application. Roller positions are designed to flow in the same position as conveyors from our powered ranges including KCB 80, KCB 113, KCB114, KCB 135 & KCB 165 Conveyors. Roller positions are also replicated with our range of powered roller conveyors.

CONVEYOR ROLLERS

With options of 30mm, 50mm or 60mm diameter rollers, dependant on the powered unit and handling capacity required, we can also manufacture rollers in PVC or Stainless steel to suit various applications such as non-marking, chemical contact, and food processing. Conveyor rollers are provided with spring-loaded spindles for ease of maintenance and reliability.
