Stock Conveyors
Stocked Belt Conveyors & Stock Gravity Roller Conveyors
New Pre Stocked Conveyors & Newly Manufactured Stock Belt Conveyors and Stocked Gravity Roller Conveyors
At Conveyor Sections, we understand that in some instances, stocked conveyors can be a welcoming idea to our customers.
Typically Gravity Roller Conveyors and Belt Conveyors can hold lead times anywhere from 2 - 8 weeks, which is why we offer a comprehensive range of newly manufactured stocked Belt Conveyors and Gravity Roller Conveyors, in addition to Used Conveyor Systems.
Stocked conveyors offer a quick lead time, bringing our customers convenient handling solutions on time and within budget.
In stocked belt conveyors and stock gravity roller conveyors, are supplied CE marked with 12 months warranty from the purchase date, as standard.
Conveyors for Sale, View our current New Stock Conveyors, available for immediate delivery "off the shelf Belt & Gravity Conveyors".

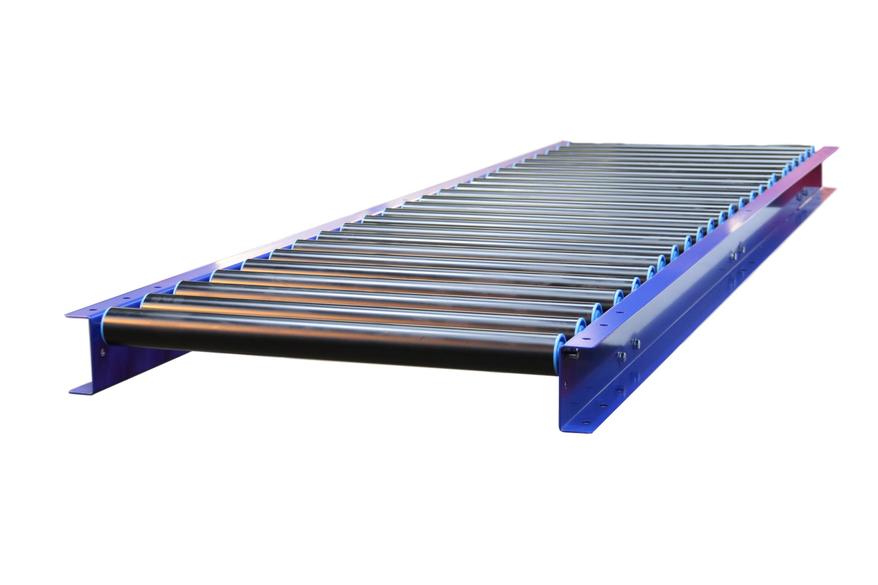

Stocked Gravity Roller Conveyors
STOCK ITEM = KCT.3.450.75.PVC - Gravity Roller Conveyor
Lengths = 2400mm
Roller Widths = 450mm
Inside Frame = 460mm
Total Frame Width = 540mm
Roller Pitch / Centres (mm) = 75mm
Roller Diameter = 50mm
Tube Type = 2.8mm PVC black high impact PVC
Weight Capacity 1 = 25kgs
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Finished Size = 103mm H x 40mm W
Roller Position = 8.6 mm above frame line.
Finish = 5002 (Blue)
KCT.3.450.75.PVC
- QTY = 16
STOCK ITEM = KCT.3.400.150.STEEL - Gravity Roller Conveyor
Lengths = 2400mm
Roller Widths = 400mm
Inside Frame = 410mm
Total Frame Width = 490mm
Roller Pitch / Centres (mm) = 150mm
Roller Diameter = 50mm
Tube Type = 1.5mm Galvanised Steel
Weight Capacity 1 = 80kgs
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Finished Size = 103mm H x 40mm W
Roller Position = 8.6 mm above frame line.
Finish = 5002 (Blue)
KCT.3.400.150.STEEL
- QTY = 1
STOCK ITEM = KCT.3.450.100.STEEL - Gravity Roller Conveyor
Lengths = 2400mm
Roller Widths = 450mm
Inside Frame = 460mm
Total Frame Width = 540mm
Roller Pitch / Centres (mm) = 100mm
Roller Diameter = 50mm
Tube Type = 1.5mm Galvanised Steel
Weight Capacity 1 = 80kgs
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Finished Size = 103mm H x 40mm W
Roller Position = 8.6 mm above frame line.
Finish = 9001 (Matte Black)
KCT.3.450.100.STEEL
- QTY = 3
STOCK ITEM = KCT.3.600.75.STEEL - Gravity Roller Conveyor
Lengths = 2400mm
Roller Widths = 600mm
Inside Frame = 610mm
Total Frame Width = 690mm
Roller Pitch / Centres (mm) = 75mm
Roller Diameter = 50mm
Tube Type = 1.5mm Galvanised Steel
Weight Capacity 1 = 80kgs
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Finished Size = 103mm H x 40mm W
Roller Position = 8.6 mm above frame line.
Finish = 5002 (Blue)
KCT.3.600.75.STEEL
- QTY = 15

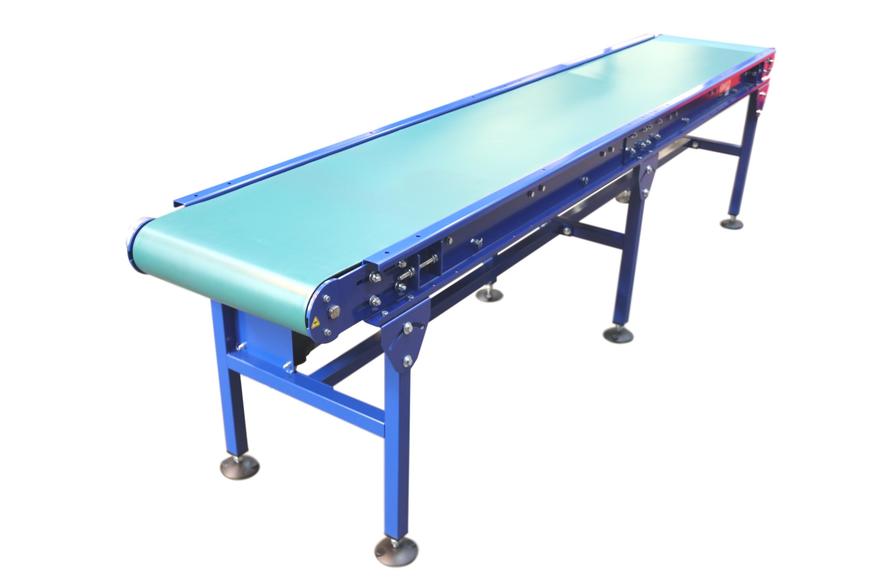

Stocked Belt Conveyors
STOCK ITEM = KCB.113.484.2M - Belt Conveyor
Conveyor Length = 2000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = Black PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.2M
- QTY = 2
- Supplied Fully Built
STOCK ITEM = KCB.113.634.2M - Belt Conveyor
Conveyor Length = 2000mm
Belt Width = 634mm
Inside Frame = 640mm
Total Width = 720mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = Black PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.634.2M
- QTY = 2
- Supplied Fully Built
STOCK ITEM = KCB.113.484.3M - Belt Conveyor
Conveyor Length = 3000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = GREEN PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.3M
- QTY = 1
- Supplied Fully Built
STOCK ITEM = KCB.113.484.4M - Belt Conveyor
Conveyor Length = 4000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = BLACK PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.4M
- QTY = 2
- Supplied Fully Built
STOCK ITEM = KCB.113.484.5M - Belt Conveyor
Conveyor Length = 5000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = BLACK PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.5M
- QTY = 1
- Supplied Built OR Kit with Instructions
STOCK ITEM = KCB.113.484.6M - Belt Conveyor
Conveyor Length = 6000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = BLACK PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.6M
- QTY = 1
- Supplied Kit with Instructions
STOCK ITEM = KCB.113.634.6M - Belt Conveyor
Conveyor Length = 6000mm
Belt Width = 634mm
Inside Frame = 640mm
Total Width = 720mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = BLACK PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.634.6M
- QTY = 1
- Supplied Kit with Instructions
STOCK ITEM = KCB.113.484.8M - Belt Conveyor
Conveyor Length = 8000mm
Belt Width = 484mm
Inside Frame = 490mm
Total Width = 570mm
Support Height = 750 - 850mm TOB
Frame Type = 2.5mm mild steel
Manufacturing = CNC cut & folded profiles
Belt Type = BLACK PVC
Tracking = 10 x 6 Guides (Both Sides)
Side Guards = None
Belt Speed (Max) = 19.8 mpm
Drive Pulley = 113mm Steel Geared Drum
Tail Pulley = 113mm Mild Steel Shell
Control = 240v Speed Control Variable
Stop, Start, Isolator, c/w Additional E-Stop
Finish = 5002 (Blue)
KCB.113.484.8M
- QTY = 1
- Supplied Kit with Instructions
Can't find what you are looking for?
Conveyor sections offer a wide range of Gravity Roller and Belt Conveyors in addition to alternative conveyor types within our standard range.
Why not contact us today to find out more information.
