KCB 80 LIGHT DUTY CONVEYORS & BELT CONVEYOR SYSTEMS

KCB 80 LIGHT - MEDIUM DUTY BELT CONVEYORS - 80MM + 89.5MM  CONVEYOR ROLLERS

Conveyor Specification



Conveyor Lengths = 1000mm - 20000mm.

Belt Width = 116mm - 1016mm.

Inside Frame = + 10mm.

Total Width = + 80mm.

Frame Depth = 101mm.

Side Frame = Cold rolled grade 4 mild steel 2.5mm.

Bed Type = Steel slider, 4 sides folded and seam welded for additional strength.

Conveyor beds = Semi suspended; complete with stainless steel spacing collars.

Frame Ties = 20 x 20 x 2.0mm Mild steel complete with welded 5mm brace plates - Modular bolted fitment.

Standard Belt Options = Twin 4 x 6 Tracking Guides Fitted to Belt underside virtually eliminating belt tracking issues and downtime.

Under Rollers = P2 Galvanised 30 x 1.5mm ERW tubes fitted with precision bearings.

Drive Motor = Dual voltage, steel geared Internally driven 81.5mm diameter roller with 81.5mm diameter pulleys.

Tension = M8 x 95mm threads, allowing up to 190mm total belt tension.

Conveyor End Plates = Fully welded tension plates, with 2 positions bolted fitment. Quick access cover plates allowing ease of maintenance.

Weight Capacity = 10kgs per meter standard / 20kgs per meter with specific drives.

Conveyor Speed = Standard 60 Meters per minute maximum speed (alternative speeds are available).

81.5 Ø DRUM MOTOR

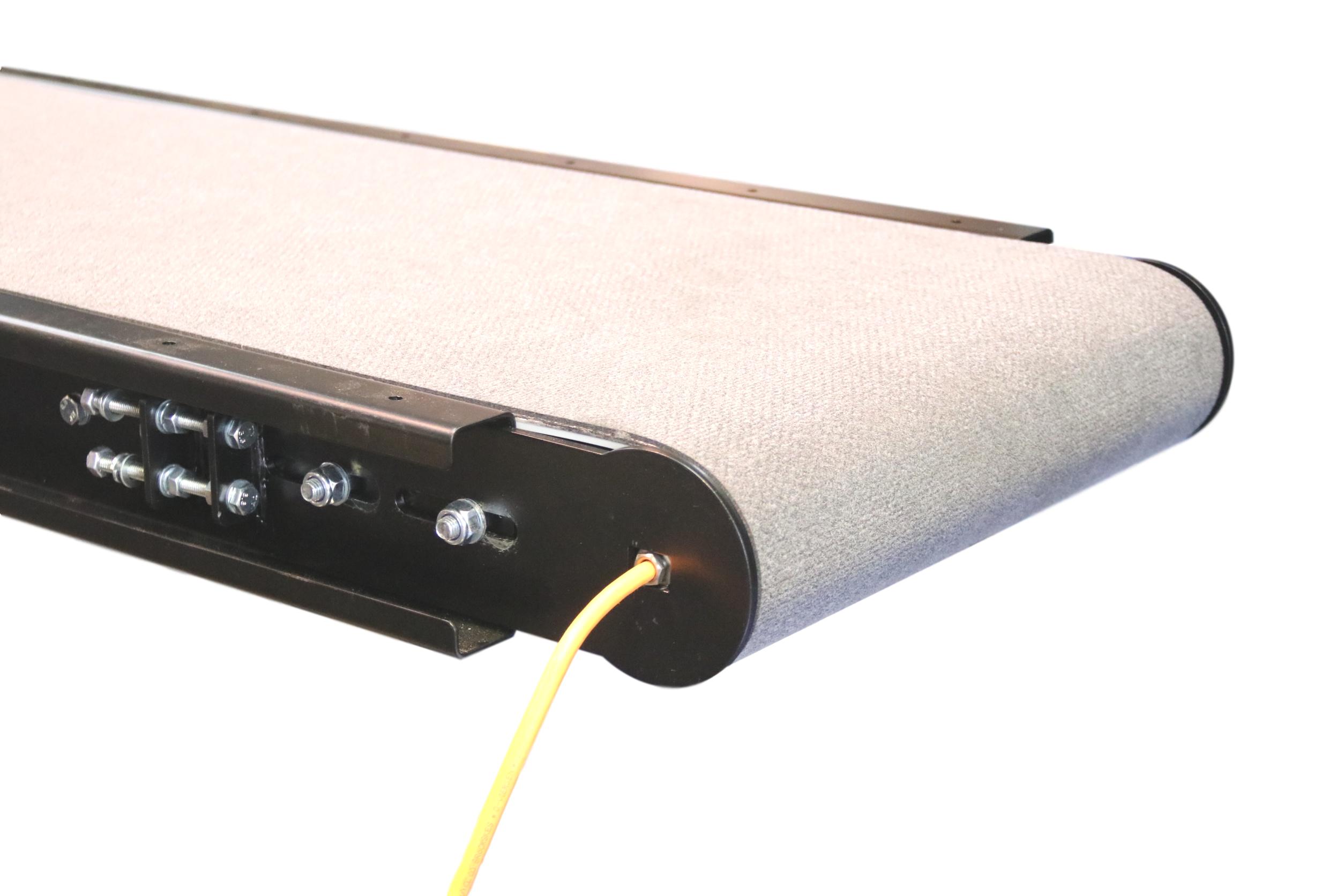

Conveyor Belt Drum Motor Low profile belt conveyor slimline belt conveyor light duty conveyors belt conveyor systmes belt conveyor manufacturers

Drum Option

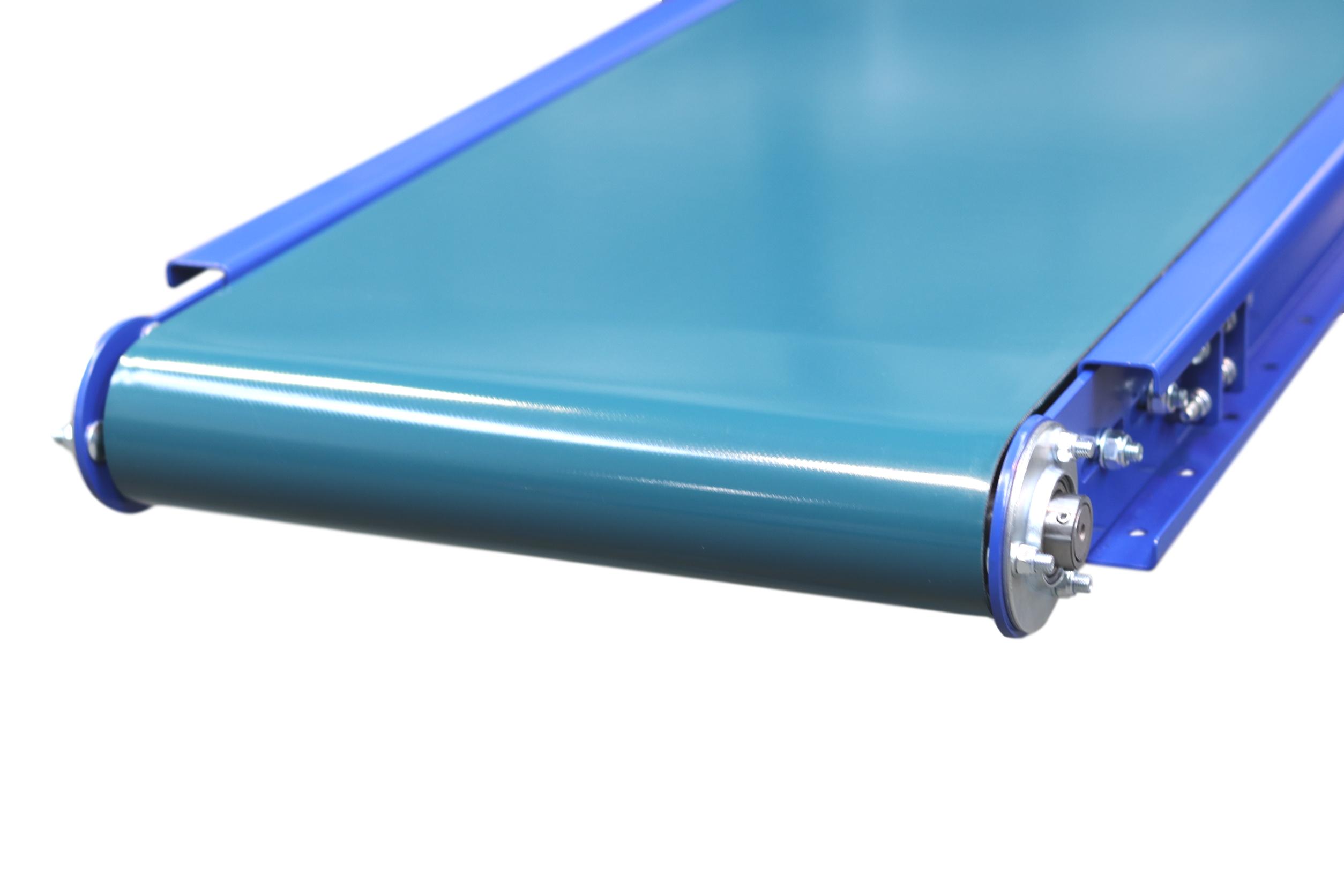

High quality steel geared drum motors from 216mm up to 1016mm Belt width. Low noise, highly efficient.  able to operate within temperatures -5° up to +40°. Operating speeds between 3 - 60 meters per minute. Drum motor options provide a smooth, clean, compact conveyor finish.

TRACKING GUIDES

Light duty belt conveyor conveyor tracking belt tensioning conveyor belt guidance twin tracking guides trutrack belt conveyor manufacturers

Belt Guidance

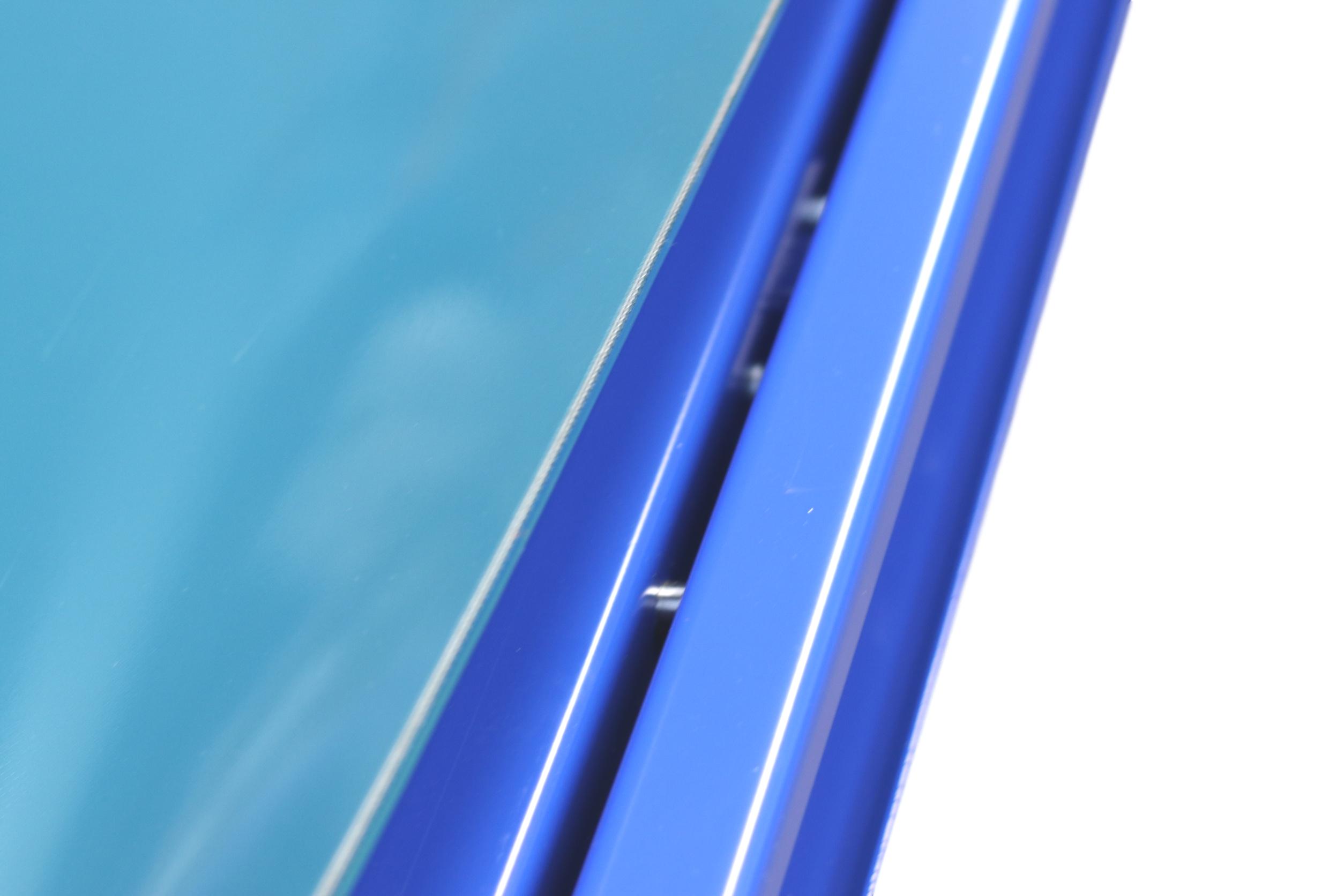

Conveyors are manufactured with four side folded semi-suspended pans. This allows fitting of 6 x 4 guides to the underside of the belt. Tracking guides virtually eliminate the requirement for belt tracking, which can cause equipment downtime and loss of production.

89.5 Ø GEARBOX MOTOR

Belt Conveyor with side mounuted motor gear box small belt conveyor slimline conveyors light duty belt conveyors

SMG Option

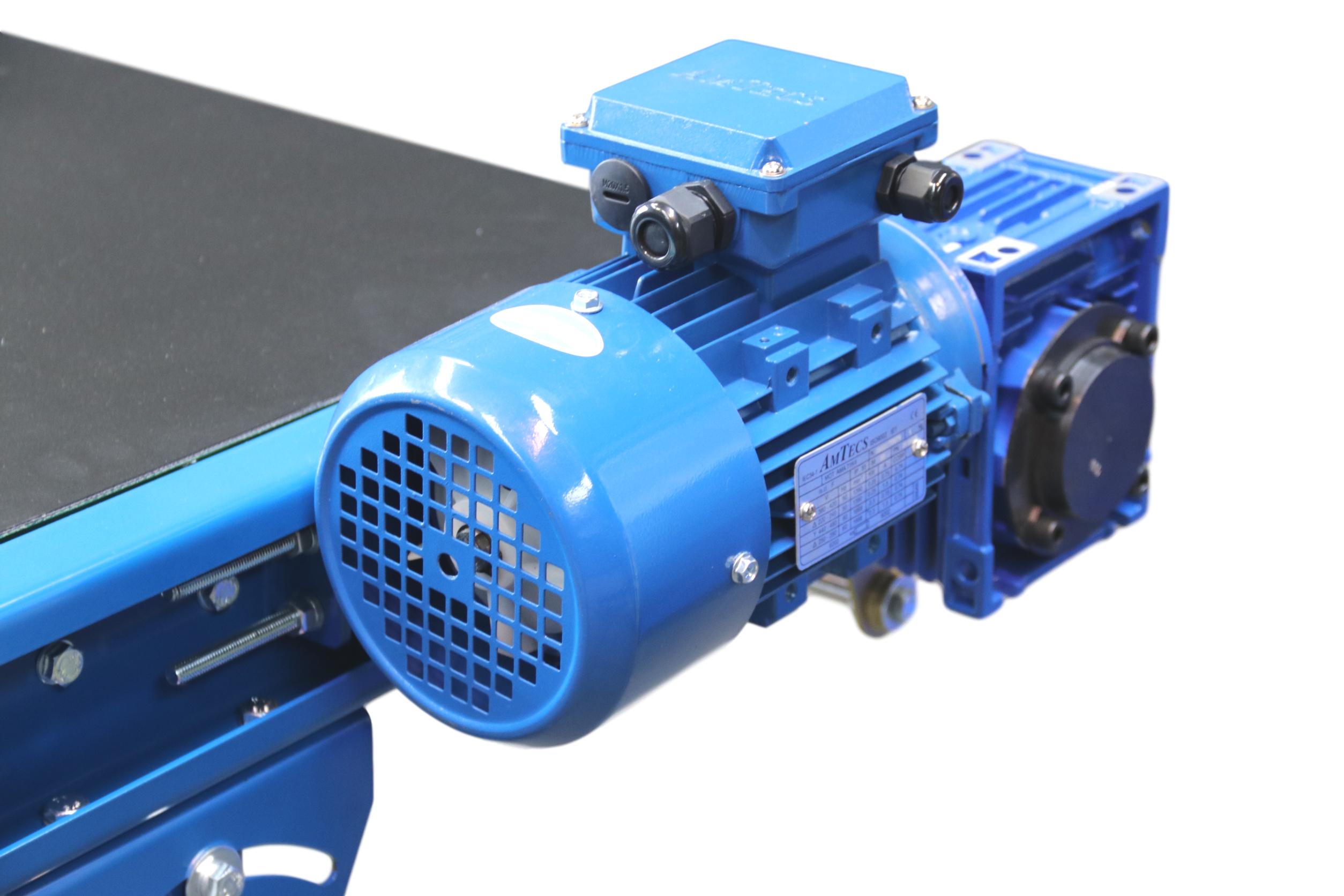

High quality side mounted motor gearboxes from 116mm up to 1016mm Belt width. Low noise, highly efficient.  Operating temperatures -5° up to +40°. Reduction gearboxes give increased speed availability. SMG provides quick and convenient drive replacement.

BELT TENSION UNIT

Belt Conveyor Tensioning Unit Low profile conveyor light duty conveyors

Belt Tensioning

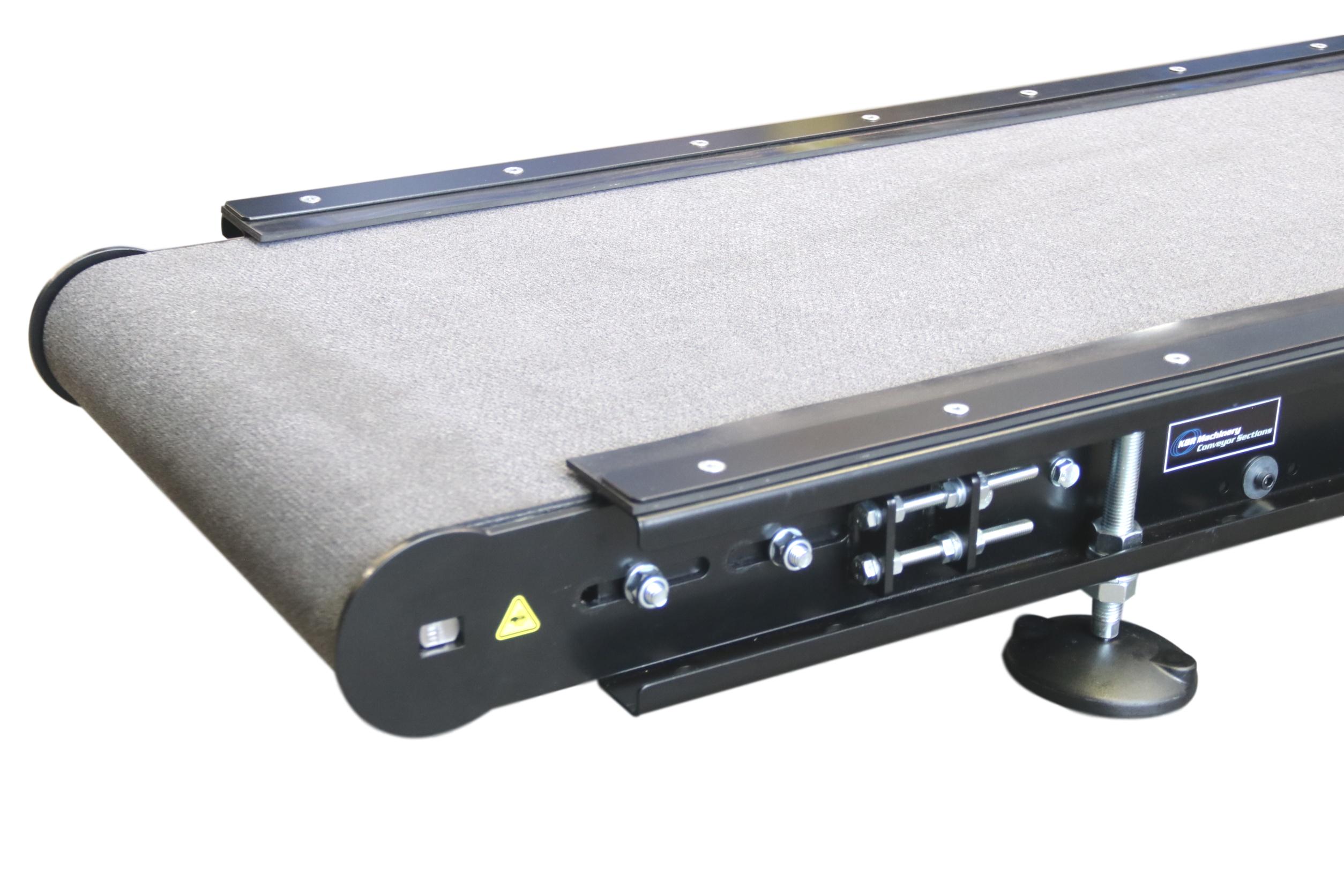

The standard tension unit provides simple and effective belt tracking and tensioning.

M8 x 95mm Threads, allowing up to 190mm belt tensioning over the conveyor length. This allows endless belting to be fitted as opposed to fasteners.

Joining Plates

Slim Conveyor Smooth Line Conveyor low profile conveyor belt conveyor manufacturers medium duty belt conveyors

Frame Joining Plates

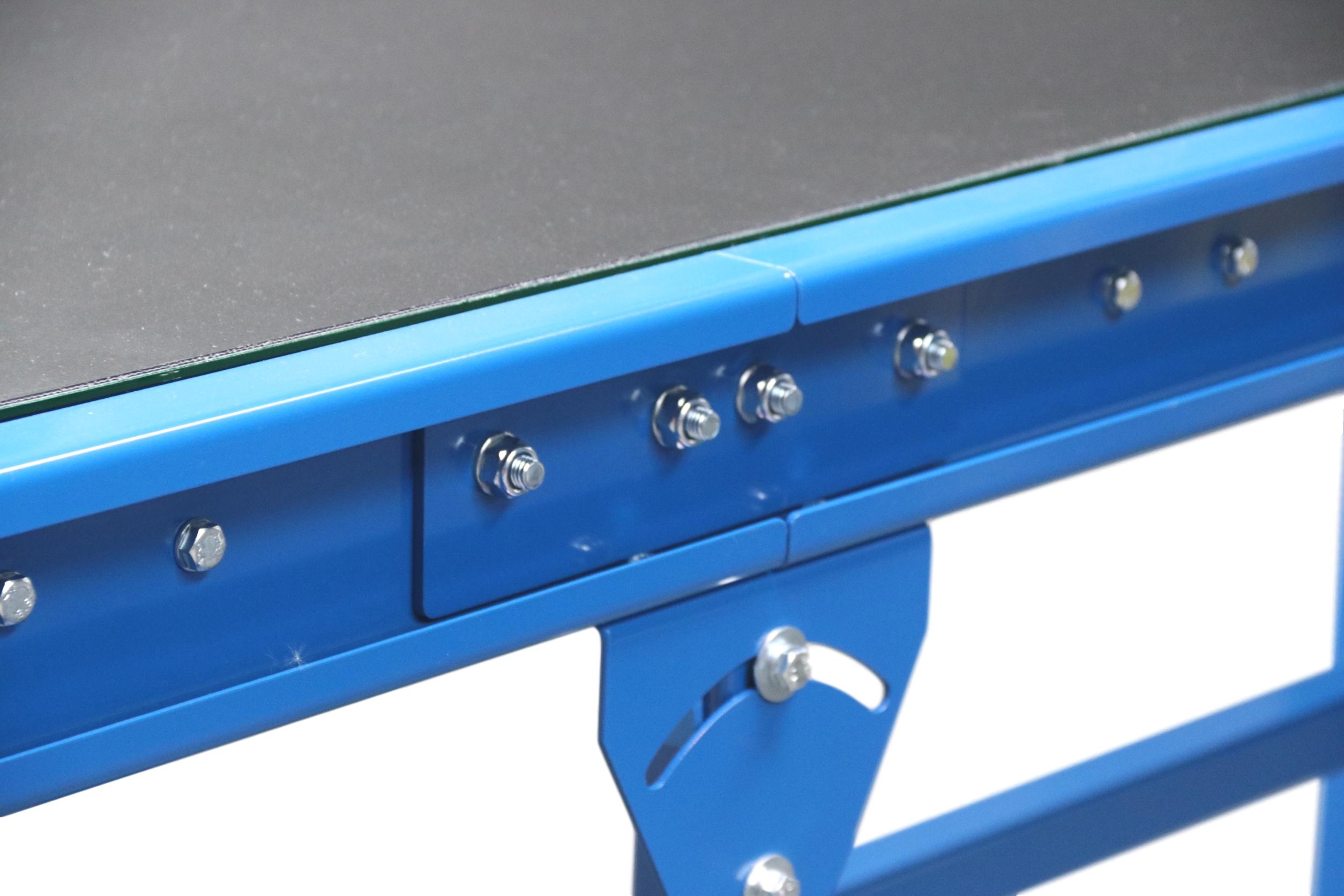

Belt Conveyors in excess of 2.5m are assembled in multiple sections. Durable 4mm frame joining plates are used in addition to a central supporting stand for added stability.

LOW PROFILE CONVEYOR

Low Profile Conveyor Slim Conveyors Light Duty Conveyors Press Conveyors Machine Conveyors Belt conveyor manufacturers

Low Profile Design

KCB 80 Belt conveyors have a 100mm deep side frame profile. This low-level conveyor frame is extremely versatile. Ideal for tight compact spaces, support stands can be inset suiting applications within press machinery, plastic extrusion and other related application where space is critical.
